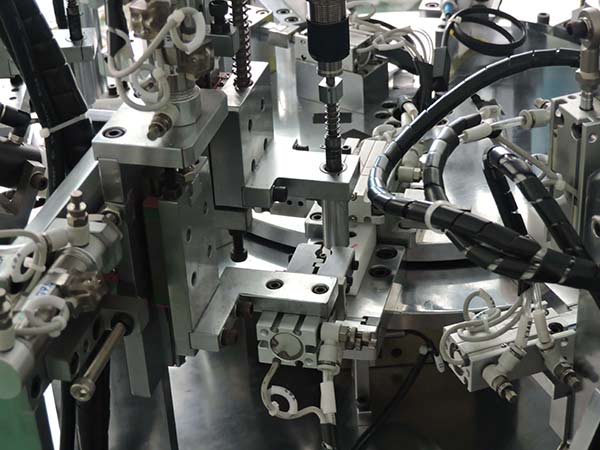

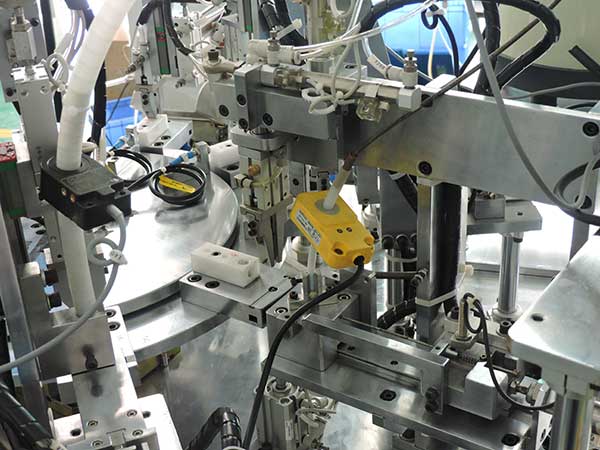

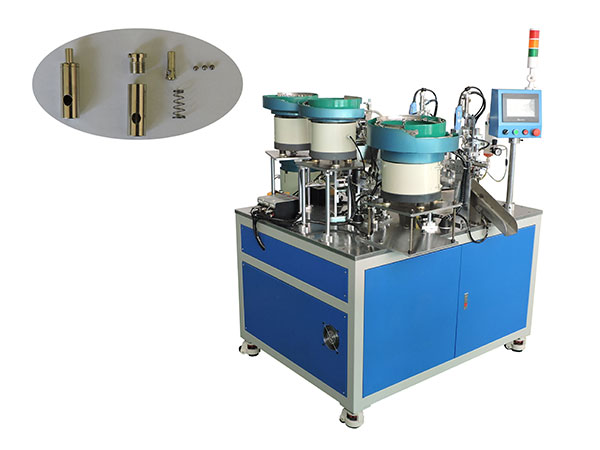

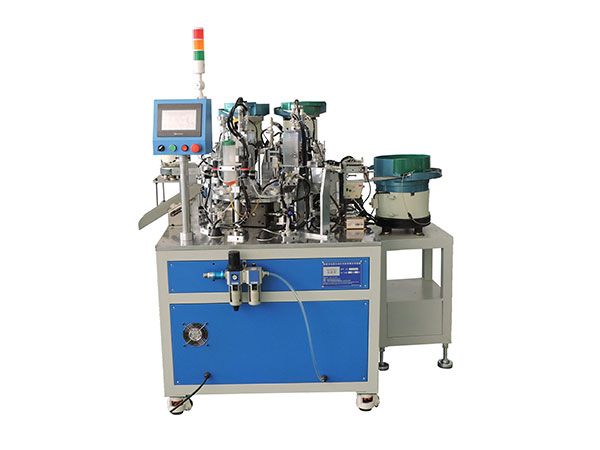

★ Equipment usage: This equipment is an automatic assembly machine for the wire rope to fix and lock the lifting code lock block.

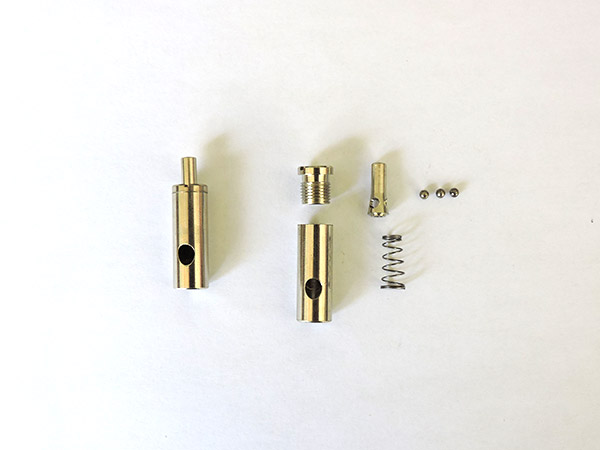

★ Assembling accessories: 5 pieces in total: main work piece, slotted nut, ball bracket, ball, spring. Distributed through 5 vibrating plates respectively.

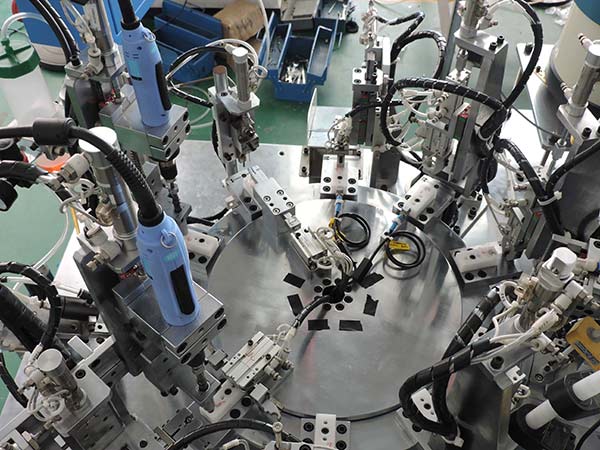

★ Turntable rotation: The three-phase asynchronous motor rotates 20 times to drive the divider to rotate 1 week (ie 360°)

★ Action control: Every time the turntable rotates 1 station is a cycle period, and each action can be controlled.

★ Assembly sequence: (1) main work piece → (2) ball bracket → (3) ball → (4) flat nut → (5) spring → (6) bracket as a whole → (7) glue → (8) Locking → (9) Ball tension detection → (10) Finished product.

★ Production efficiency: 18-25/min

★ Power requirements: AC-220V ±10%, 50Hz, grounded

★ Gas source requirement: 5.5～6kgf/cm2

★ Power consumption:<1.5kw
